Vibration Isolators (U-Form type)

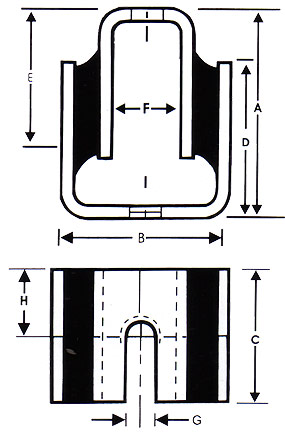

SIZE A B C D E F G H
S 78 80 51 56 51 32 13.5 25
L 108 86 64 82 76 38 16.5 32


Suitable for load ranging up to 150 kgs.

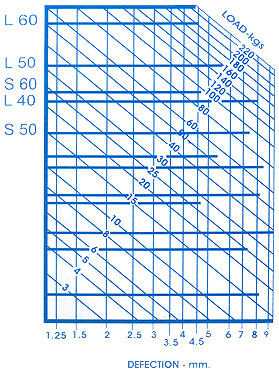

Selection chart of Rubber Mix with load & corresponding deflection of U Form Mounting
